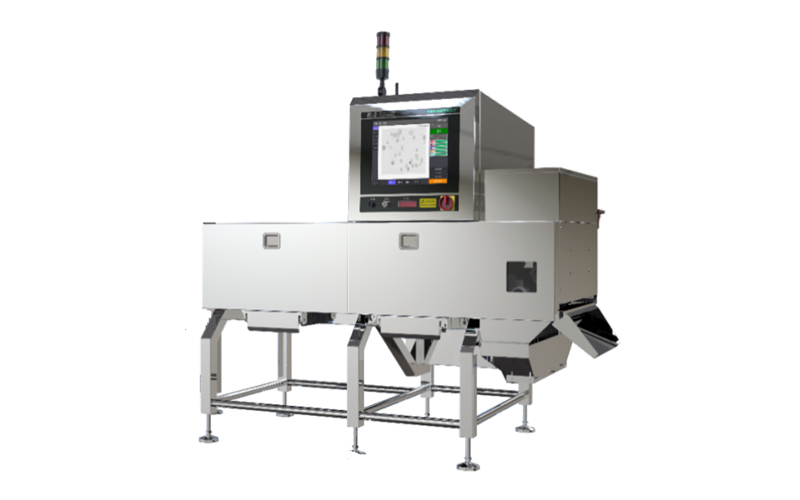

X-ray Machine-BL6016

Short Description:

The VXD-B6016-L X-ray foreign matter detector focuses on the detection of foreign matters in bulk goods. Relying on high-precision X-ray imaging technology and AI intelligent algorithms, it can efficiently detect various types of foreign matters in products. It supports the online synchronous detection of foreign matters with different properties, and is equipped with a high-speed spray valve rejection system, which can achieve high output, low loss and high profits. It is widely applied in the food processing industry and effectively guarantees product quality and safety.

Send email to us

Product Detail

Product Tags

Advantages

1.The standard AI algorithm is simple and intelligent,no previous experience is required,it can quickly add new products according to the wizard.

2.The machine is integrated with a 48-96 way array air reject valve,which can accurately eliminate and reduce carryover of good product.

3.Server-level Linux system,computer virus immunity,abnormal power failure without data loss.

4.Superior to the international radiation safety standards,offering enhanced protection through integrated safety interlocks and monitoring functions.

Applied range

•Nuts •Tea leaves •Fruit and veges •Tabacco leaves

•Herbs •Multi-grain beans spices

Technical Parameters

Model	VXD-B6016-L
X Radiation Source	210W/350W
X-Ray Leakage	<1 μSv/h, superior to the internationally accepted radiation safety standard
Detection Precision	Steel Ball: 0.3mm; Steel wire: 0.2*2mm; GlassBall:0.8mm,CeramicBall:0.7mm
Operating System	Linux
Human-Machine Interface	17-inch Touch screen
Conveyor Speed	5～110 m/min
Maximum Product Weight	Max 10kg

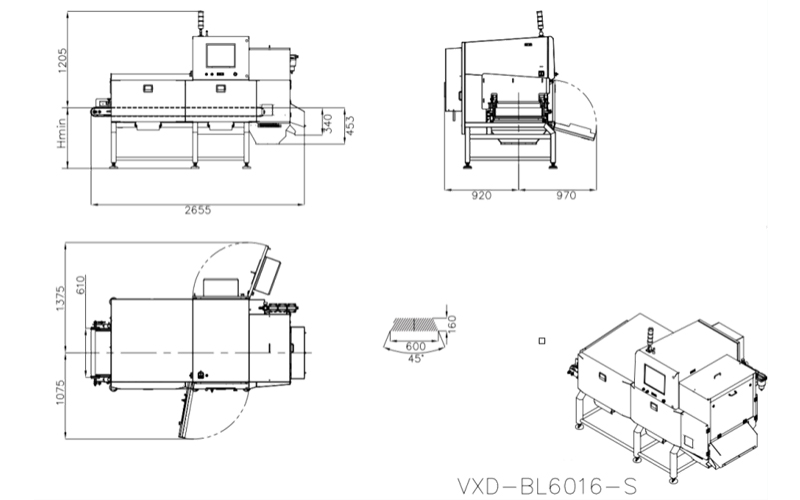

Max Detection Size	(W)600×(H)160 mm
Power Supply	AC220V，50 – 60Hz
Environment	Working Temperature0~45°C,Relative Humidity 30~85%no condensation
IP Rate	IP66 for Conveyor,IP54 for other parts
Material	304 SUS，Mirror/Sandblasted
