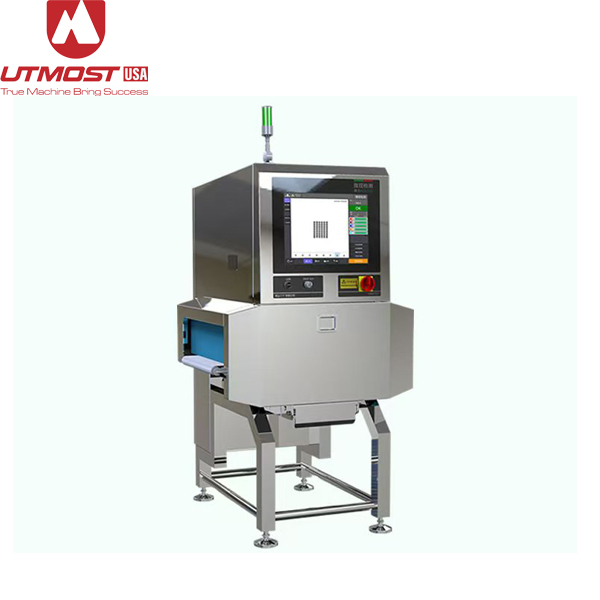

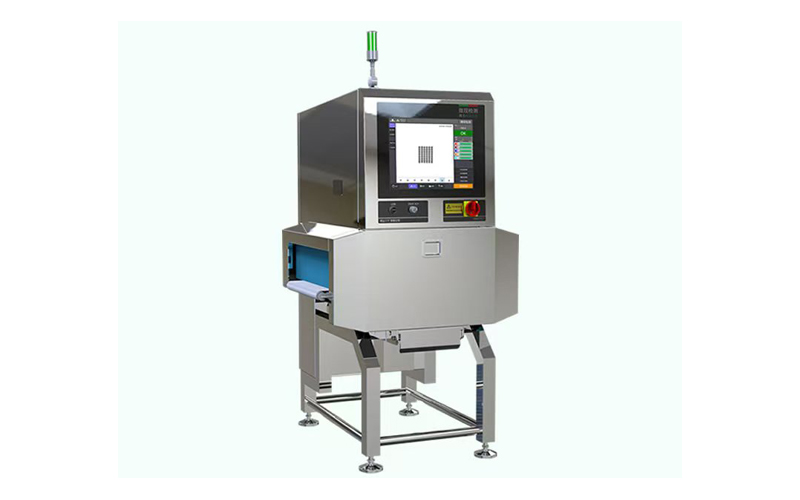

X-ray Machine-VXD-C4016-S
Product Overview
The ISIPHETHO X-ray machine is specifically designed for small and medium-sized packaged products in the food, pharmaceutical, and chemical industries. The device is unaffected by temperature, humidity, salt, or packaging materials such as aluminum foil. It features high precision and reliability. Its modular design allows for easy disassembly and cleaning, and the customized algorithm ensures accurate detection of specific foreign objects. The device is easy to operate and suitable for various complex production environments.
Technical Parameters
| Model | VXD-C4016-S |
| X Radiation Source | VJ, max80Kv/210W |
| X-Ray Leakage | <1 μSv/h, superior to the internationally accepted radiation safety standard |
| Detection Precision | Steel ball: 0.3mm; Steel wire: 0.2*2mm; Ceramic glass ball: 1.0mm |
| Operating System | Linux |
| Human-Machine Interface | 17-inch Touch screen |
| Conveyor Speed | 5～60 m/min |
| Maximum Product Weight | Max 10kg |
| Max Detection Size | (W)400×(H)160 mm |
| Power Supply | AC220V，50 – 60Hz |
| Environment | Working Temperature0~45°C,Relative Humidity 30~85%no condensation |
| IP Rate | IP66 for Conveyor,IP54 for other parts |
| Material | 304 SUS，Mirror/Sandblasted |
Product Advantages
- Uses dynamic feature recognition algorithms to automatically select algorithm parameters, achieving high-sensitivity detection.
- Detection accuracy can be set by the user, suitable for complex product detection without the need for technical personnel.
- The first in the industry to adopt a server-grade Linux system, ensuring system stability and immunity to computer viruses.
- Fully sealed design to handle humid environments, double-layer heat circulation for high-temperature environments, and anti-condensation design for temperature differential environments.
- Modular design for easy disassembly and cleaning, with belt removal taking only 5 seconds.
Detection channel protection rating of IP66, allowing direct washing, and X-ray leakage meets FDA standards.
