Buffer Table
Overview

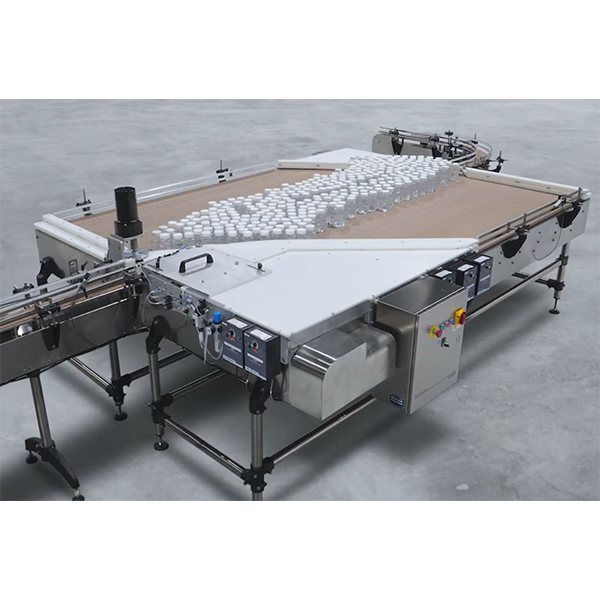

BT-5 Buffer Table is a proprietary device developed to enhance production line efficiency. It temporarily stores upstream materials, reducing frequent start-stop cycles and boosting overall productivity.
Ideal for lines with downstream intermittent stops, it ensures uninterrupted operation by providing buffer time.
Advantages
Speed adjustable:A schneider invertor driven a sew motor
PLC Control:Independent PLC control system for seamless communication with upstream/downstream equipment.
Smooth Transfer: Anti-clogging mechanism at the outlet for smooth material flow.
Flexiblity:Adjustable pneumatic cutoff mechanism to accommodate varying material specifications.
High Quality
recision-engineered with a sleek, modern design
Safety:Emergency stop switches installed at both front and rear.
Parameters
| MODEL | BT-5 |
| Belt Material | Net chain |
| Buffer Space | 5.3m2 |
| Bottle Size | Round shape jar |
| Power Supply | 220 V, 50/60 Hz, Single Phase |
| Power Consumption | 750W |
| Air Source | 0.4~0.6MP |
| Machine Body | SUS304 |
| Machine Dimensions | 2000*3500*850mm |
| Machine Weight | 500KG |

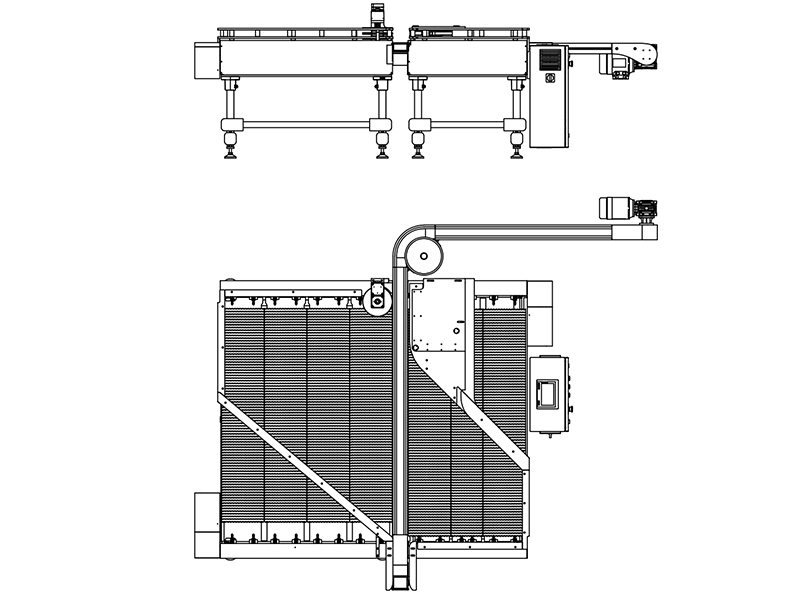

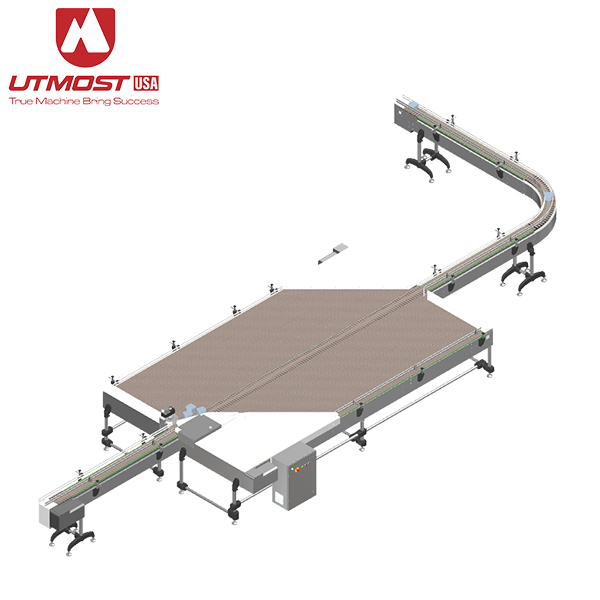

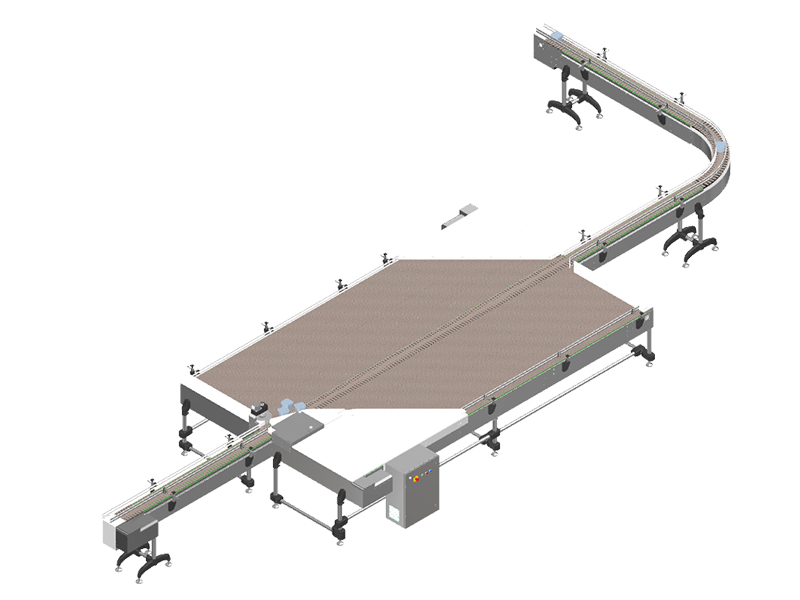

Layout
