4 Lanes RPC240 Nespresso filling and sealing machinery

Short Description:

coffee capsule packaging machine is an automated system designed for high-efficiency production of single-serve coffee capsules. It performs key processes such as capsule feeding, precise coffee dosing, sealing (with foil or film), nitrogen flushing (optional)

Send email to us

Product Detail

Product Tags

Parameter

Model number	RPC-240N
Production capacity	240cups/minute
packaging container	Nespresso
Perfusion accuracy	±0.2g
voltmeter	380V, 50Hz, three-phase
Electricity consumption	10KW
Gas consumption	0.4m³/minute
Pressure	0.6Mpa

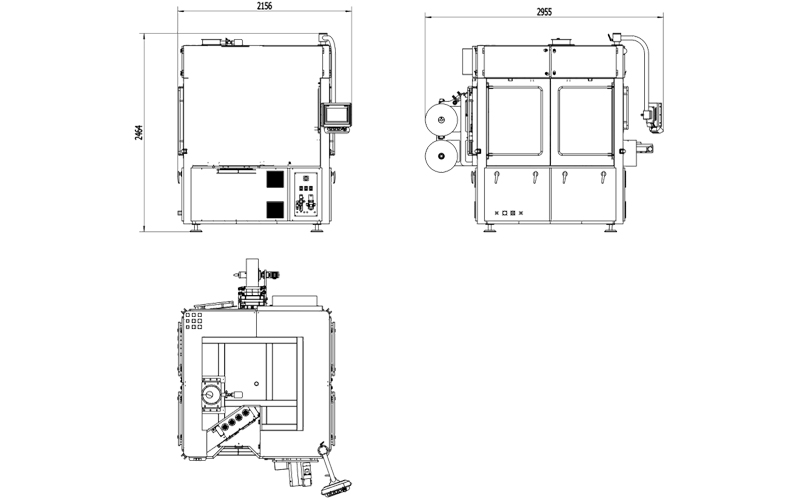

Packing size	L300420042450
Net weight	3500KG

configuration

Department		Brand
Main drive	Servo motors and drives	Siemens/Germany
Main pneumatic components	Cylinders & Battery Valves	FESTO/Germany
Vacuum	vacuum cleaner	Becher/Germany
Electronic	Sensor	Pilz/Germany
Electronic	Low-voltage electrics	Schneider/French
Machinery	bearing	SKF/Germany
PLC	motion control	Siemens/Germany
Touch screen	15寸	Siemens/Germany
