X-ray Machine-VXD-D1623-S

Short Description:

Comprehensive detection of foreign bodies for canned, boxed and bottled products transmitted upright can effectively detect and eliminate defective products containing metal, glass, ceramic,hard rubber, resin, bone, shell, stone and other foreign bodies.


Product Detail

Product Tags

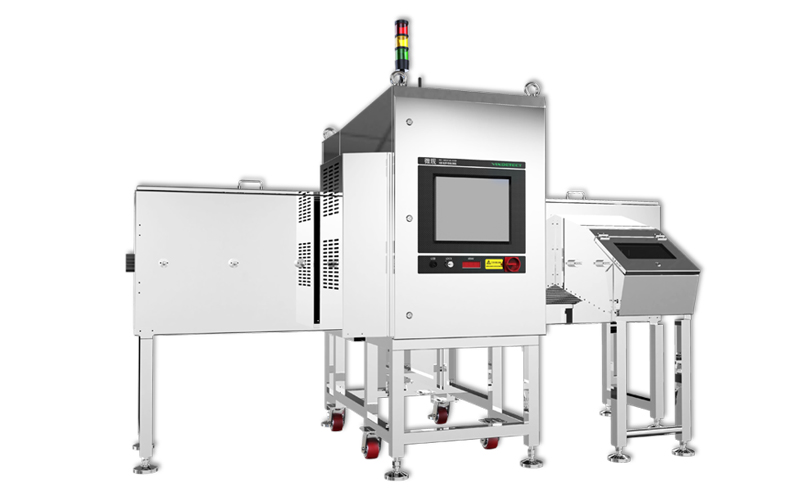

4



Product Superiority

1.lFeatures guided self-learning, no prior experience required, and delivers excellent high-precision detection.

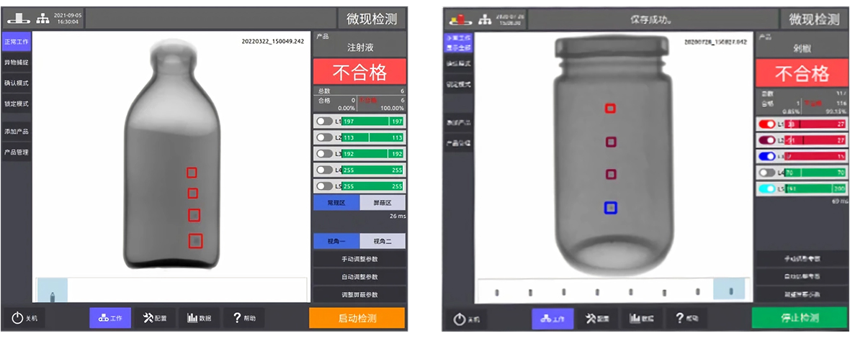

2.lAdopts artificial intelligence (AI) algorithms, which can detect low-density and extremely tiny foreign objects based on the objects’ various characteristics.

3.lEquipped with a server-grade Linux system, it is immune to computer viruses and ensures no data loss in case of unexpected power outage.

4.lSupports multiple connection methods (4G wireless network and wired network), enabling rapid remote technical support and operation control, as well as automatic pushes of device fault alerts.

5.lExceeds internationally accepted radiation safety standards and specifications, and is equipped with a safety interlock monitoring function.

6.lThe main unit integrates 48–96 channels of array jet valves to precisely reject defective products and minimize the unintended removal of good products.




Parameter

Model VXD-D1623-S VXD-D1825-S
X-Ray Source 210W/350W
Detection Sensitivity SUS Ball: 0.3mm,   SUS Wire: 0.2*2mm, Ceramic/Glass Ball: 1.0mm
Operation System Linux System
HMI 17-inch touch screen
Conveyor Speed 5~80 m/min
Products Weight Max 10kg
Aperture Dimension Max Width 100mm,   Max Height 240mm Max Width 210mm,   Max Height 310mm
Power AC220V, 50-60Hz
Temperature/Humidity Working Temperature 0~45℃,   Relative Humidity 30~85%no condensation
IP Grade IP66 for Conveyor,   IP54 for other parts
Machine Material 304 SUS,   Mirror/Sandblasted

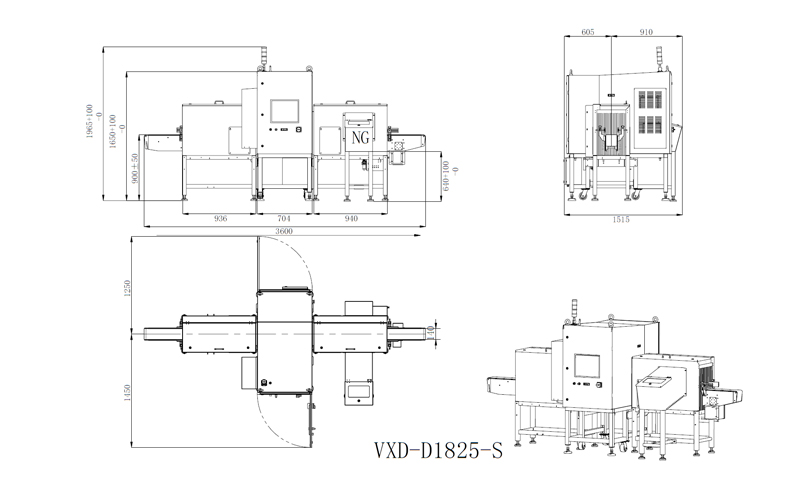

Layout

5
