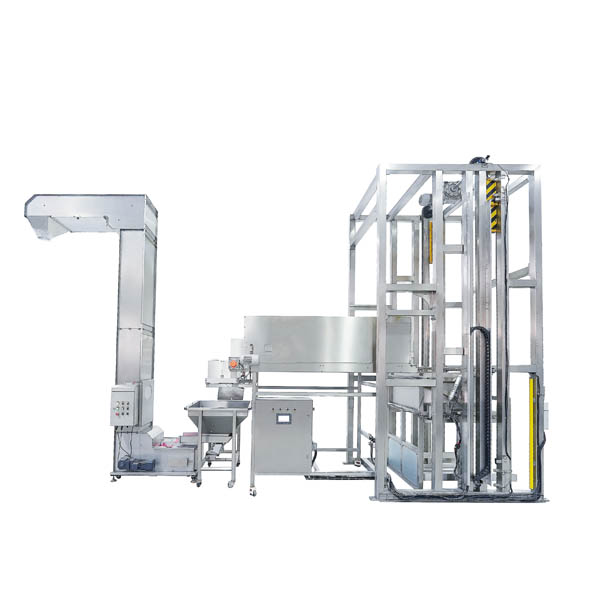

Utmost Automatic Feeding and Buffering System for Premade Small Pouches
Product Overview
This system is specifically designed for premade small pouches, providing stable, controlled feeding to downstream packaging machines through large-capacity buffering and intermittent conveying. Operators can dump an entire carton of pouches at once; the system automatically elevates and releases pouches on demand, effectively eliminating downtime and clogging risks caused by frequent manual feeding. A single load supports up to 45 minutes of continuous production, and one operator can efficiently serve multiple packaging machines, significantly improving line automation and labor efficiency.
Specifications
| Item | Parameter/ Configuration |
| Buffer Capacity | Up to 11,000 pouches (based on 3″ × 5″ premade pouches) |
| Packaging Speed | Up to 240 pouches/min |
| Continuous Feeding Duration | Up to 45 minutes |
| Staffing Configuration | 1 operator can serve approximately 10 packaging machines |
| Conveying Control Method | Intermittent belt operation (effectively prevents downstream clogging) |
| Safety Protection | Safety door (loading area) + safety light curtain (elevating and transfer area) |
| Structural Material | 5 mm thick stainless steel frame, industrial-grade strength and durability |
Product Advantages
- Eliminates manual feeding bottlenecks: A single load supports 45 minutes of continuous operation, preventing packaging machine downtime caused by feeding interruptions.
- Significantly improves labor efficiency: One operator can manage approximately 10 packaging machines, reducing labor costs and physical workload.
- Intelligent anti-clogging design: Intermittent conveying precisely controls material flow to prevent downstream accumulation and jams, ensuring smooth line operation.
- Fully automatic pouch elevating: Integrated vertical lifting mechanism eliminates the need for manual lifting or high-level feeding, making operation safer and less strenuous.
- Multi-layer safety protection: Interlocked safety door at the loading area and light curtain at the transfer area trigger an immediate stop in case of abnormality, protecting personnel safety.
- Industrial-grade ruggedness: 5 mm stainless steel frame, self-locking gear motors, and high-torque motors are built for high-intensity continuous operation.
