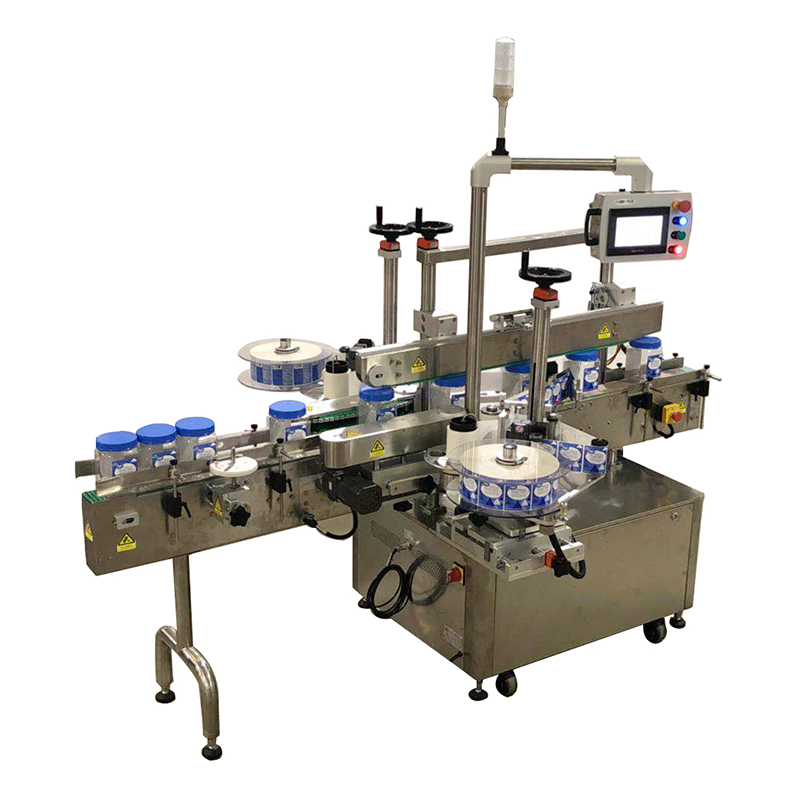

UTMOST A920 Box-shaped Jar Labeller

Short Description:

This is an intermitent motion box-shaped jar labeling machine featuring accuracy positioning with servo-driven label feeding. Equipped with high-accuracy photoelectric detection, it delivers stable performance at speeds ranging from 20 to 150 bottles per minute (depending on container size). The machine boasts a simple and compact design with easy size changeover capability, making it ideal for flexible production requirements.


Product Detail

Product Tags

4



Overview
This is an intermitent motion box-shaped jar labeling machine featuring accuracy positioning with servo-driven label feeding. Equipped with high-accuracy photoelectric detection, it delivers stable performance at speeds ranging from 20 to 150 bottles per minute (depending on container size). The machine boasts a simple and compact design with easy size changeover capability, making it ideal for flexible production requirements.





Advantages

Precision Registration: Special sensor detects bottle orientation features for accurate alignment.

Accuracy position: Top conveyor belt synchronizes with main conveyor to maintain bottle positioning

Flexible Handling: easy for different jars size changeover

Centralized Management: Integrated control panel displays peripheral device parameters and alarms.

Smooth Operation: Servo motor-controlled label feeding ensures precise and reliable performance.
User-Friendly Design: Compact layout with easy access for troubleshooting and maintenance.



Parameters:

Model: A920
Production Capacity: 20-120labels/min
Packaging Container: Jar, Tin, Can, Bottle Etc
Container Size: Width 30-90mm, Height 30-300mm
Label length 10-200mm
Precison +-1mm
Voltage: Single Phase, 220V,50/60HZ
Power Consumption: 1.3KW
Machine Dimensions: 3000×1620×1591mm
Weight: 350KG

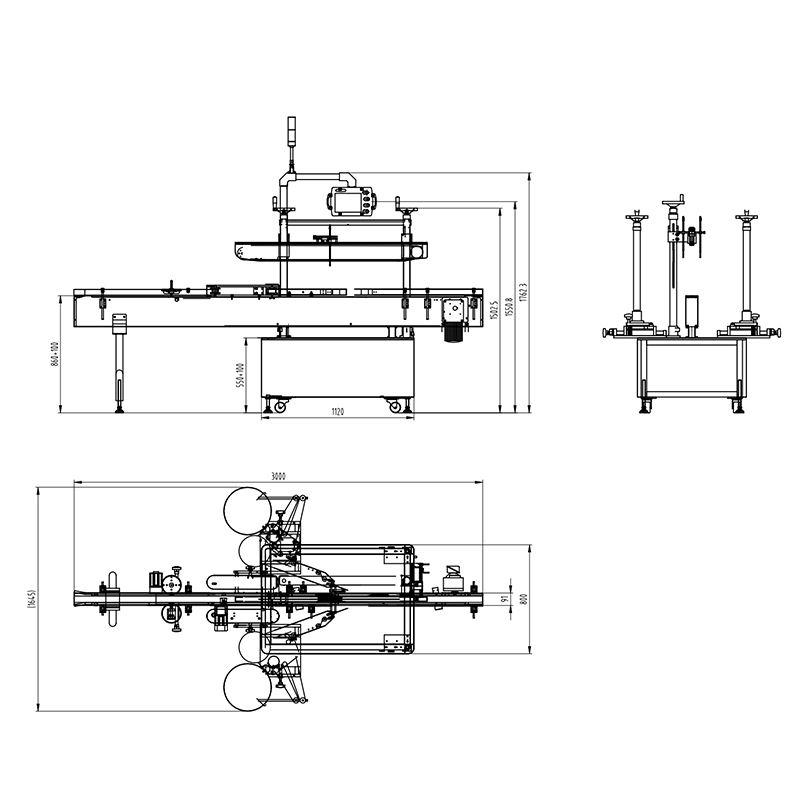

Layout

5
