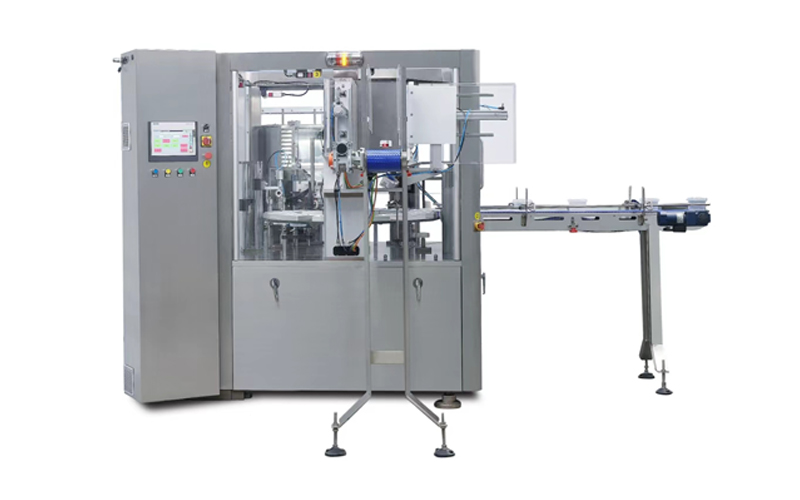

Sauce Cup Filling Sealing and Capping Machine-RPC-60L
Design concept
Safety: Safety door lock + safety relay + exhaust valve
Simplicity: Transparent drive structure for easy maintenance
Stability: Fully mechanical design
Efficiency: 20–40 cartons per minute
Easy to Clean: Spacious design with no dead corners or exposed screws in material contact areas
User-Friendly Operation: Object-oriented logic-based program architecture
Technical Specifications
| Model: | RPC-60L |
| Capacity: | 20-40tub/min |
| Packaging Container: | tub |
| Filling Volume： | Max 2KG |
| Container Size： | Max diameter170mm，Max depth：140mm |
| Voltage： | 220v, 60hz, 3-phase |
| Power Consumption： | 3.0KW |
| Air Consumption： | 0.2m³/min |
| Air Pressure： | 0.6Mpa |
| Machine Size： | L3300×3000×2010mm |
| Weight： | 2800KG |
Main Configuration
| Component | Configuration | |
| Main Drive | Main Motor | SEW/Germany |
| Servo Motors & Drivers | Siemens/Germany | |
| Pneumatics | Cylinders & Solenoid Valves | FESTO/Germany |
| Vacuum | Vacuum Generator | FESTO/Germany |
| Electrical | Photoelectric Sensors | Pilz/Germany |
| Low-voltage Electrical Components | Schneider/Germany | |
| Mechanical Parts | Bearings | NSK/Japan |
| Standard Parts | MISUMI/Japan | |
| Control System | PLC | Siemens/Germany |
| Touchscreen | 10inch | Siemens/Germany |

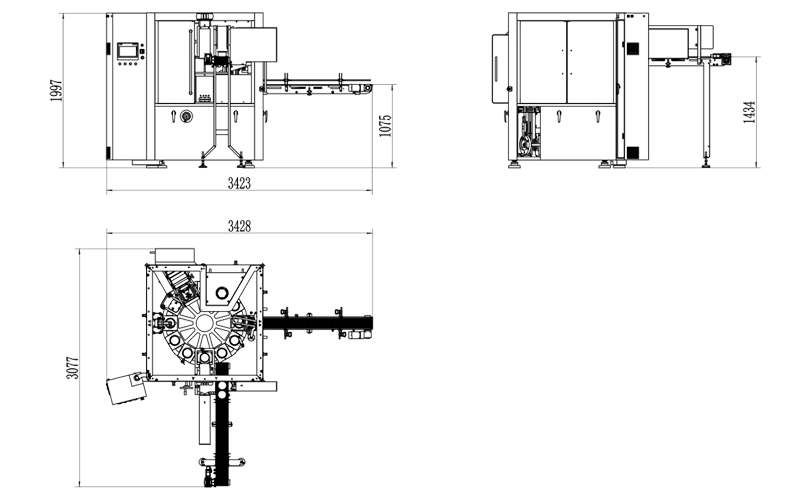

Layout
