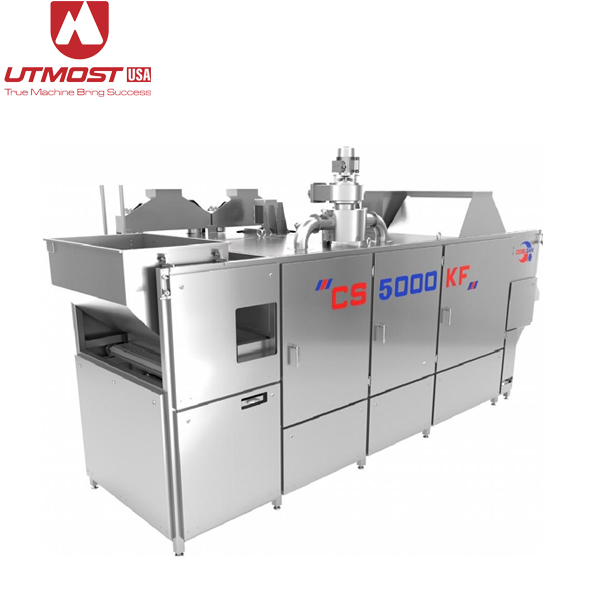

CESELSAN ROASTING – CS 5000 KF
SPECIFICATIONS
Roasting Ovens provides a homogenous roasting process by stand still the product over the continuous one level wire netting stainless-steel belt (so this feature prevent damaging of the product and enable to transfer the hot air all the surfaces of the product) and transferring the hot air both from down to up and up to down. Equally roasted product left the oven being same color and homogenously roasted way. *Because of automatically temperatures of each separate room of the ovens could be controlled independently and belt speed and thickness of the product could be controlled as desired way and level at CESELSAN Roasting Ovens, desired roasting recipes and roasting process could be applied easily.
size
| LENGT | 5,37 m |
| WIDT | 2,40 m |
| HEIGH | 2,40m |
| POWER | 11kw |
| FUEL TYP | Diesel/LPG/Gas/Electric |
CAPACITY
| CAPACIT | KG/HR |
| Hazelnut Kernel | 700 |
| Shelled Peanu | 500 |
| In-shell Peanut | 150 |
| In-shell Pistachio | 400 |
| Shelled Pistachio | 500 |
| Sunflower Seeds | 350 |
| Pumpkin Seeds | 300 |
| Almond | 400 |
| Cashew | 450 |
| Roasted chickpeas | 500 |
OPTIONS
Automatic belt washing system with pressured water Dry belt cleaning with automatic brush Alarm sensor for preventing possible accident in case of remains left of the oven’s door Special Chimneys, counter-pressure preventing device Automatic lid for setting thickness of the product being automatically Special burners, little spending and provides % 100 percent performance
OPTIONAL / STANDART EQUIPMENTS
Belt Cleaning System
Automatic Washing with Water
Dry Cleaning With Engine
Burner Systems
High Performance and Economical Special Burners
Burning Rooms
By means of specially designed burning room systems, getting % 95 performance and provides %70 fuel saving
Special Software
By means of special software, ovens are open to every kind of connection and integrated work with added machines to the system.
Standard Features
Special Chimney Systems
Safety Door Alarm System
Automatic Product Height Adjusting System
PLC Control System
Operator PLC Control System
Special Gas Pressure Preventing Systems
PLC Operator Control System
Professional PLC Operator Control System
The Belt Enables Highly Heat Transfer
Professional Automation Board Systems
Easily Cleaning Filters
Adjustable Dehumidification Systems
