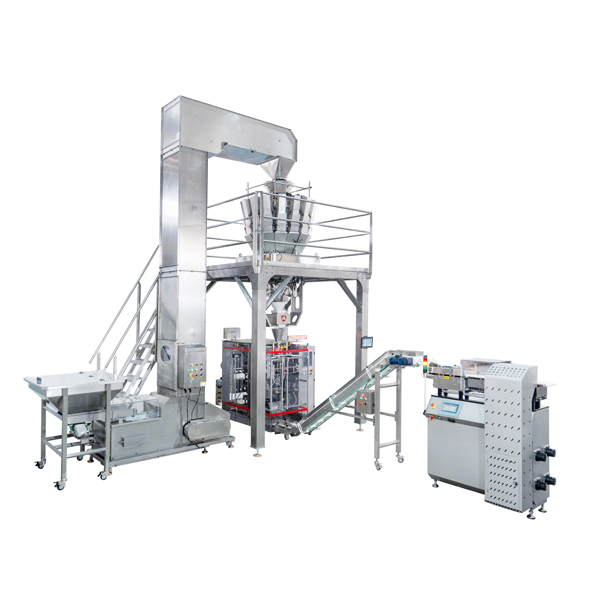

BP520H Continuous High-Speed VFFS Packaging System
Product Overview
The BP520H continuous VFFS system is designed for demanding snack food packaging applications, providing a high-speed, end-to-end solution from roll film to finished packages, specifically for nuts, confectionery, and chunky snacks. With high-response dosing and a dynamic compensation mechanism, the system effectively controls filling deviations during prolonged continuous operation, ensuring filling consistency at high efficiency. It also integrates metal detection and checkweighing to establish a dual quality-assurance barrier. Featuring servo-driven precision sealing, a fast changeover architecture, and industrial-grade reliability, it delivers trustworthy automated support for large-scale production.
Specifications
| Model | UTBP520H |
| Speed | 130 bags/min |
| bag size | Width：70–250 mm Length：150–400 mm |
| Film roll width range | 150–520 mm |
| Filling weight range | 10–1000 g |
| Voltage | AC 380 V, 3-phase, 50/60 Hz |
| Power | 9.5 kW |
| Air consumption | ≥0.45 m³/min |
| Operating pressure | 0.6–0.8 MPa |
| Size | L0000 × W0000 × H0000 mm |
| Weight | 2800 kg |
Product Advantages
- Ultra-high-speed stable operation: 130 bags/min meets the demands of high-volume continuous production, significantly reducing per-unit packaging costs.
- Quick changeover for multiple specifications: Tool-free conversion between different packaging sizes greatly enhances line flexibility and product-switching efficiency.
- High-precision metering control: Equipped with a 16-head memory combination weigher with weighing accuracy of ±2 g, ensuring net content compliance for every bag.
- Multi-layer quality assurance: Integrated metal detection and high-precision checkweigher automatically reject products containing foreign matter or those that are underweight/overweight, safeguarding outgoing quality.
- Smart and user-friendly operation: 12-inch color touchscreen supports storage of up to 50 recipes, alarm logs, and remote diagnostics, lowering the operational barrier.
- Robust and easy-to-maintain design: Main body constructed with a stainless steel frame; tool-free quick-release forming tubes make routine cleaning and maintenance quick and effortless.
